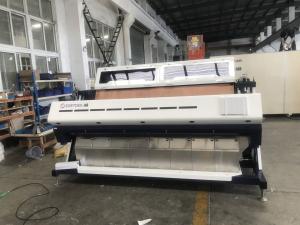

Optical CCD Color Sorter Beans Sorting Machine For Mung Beans Peanut Coffee Beans
Quick Detail:
| Model | Ejectors | Chutes | Power | Voltage | Air pressure | Air consumption | Weight | Dimension |
| (pcs) | (pcs) | (KW) | (V) | (Mpa) | (m³/min) | (kg) | (mm) |
| A8 | 512 | 8 | 3.7 | 220V/50HZ | 0.6-0.8 | <6.0 | 1500 | 3129*1707*1828 |
Description:
(1) Sensor: Japanese TOSHIBA ;Industrial color CCD of 160 million pixels, line frequency ≥ 10K, the minimum area of different colors can be up to 0.0004 square millimeters;
(2) LED: Germany OSRAM;high brightness, life-time up to 100,000 hours, and equipped with intelligent control dimming technology;
(3) Lens: Japanese NIKON, optical industry customized lens, with 150 line pairs of ultra-high resolution, low distortion: <0.2%, low color difference: <0.1 pixel, better imaging performance;
(4) Operation interface: 12-inch HD industrial computer, Intel CPU, Windows operating system, 24-bit true color display, more realistic image display;
(5) Processor: ALTERA programmable logic device processor: data processing speed>5500k bits; data transmission speed> 210mhz; the system data acquisition and processing speed >3.125 Gbps, is extremely high;
(6) Solenoid valve: customized solenoid valve for color sorter; All imported alloy materials, MATRIX technology introduced in Italy, shutdown time: <0.05ms, life: >10 billion times;
(7) Intelligent operation interface, visual analysis of images, one-click analysis of the proportion of impurities to be removed and transfer of sorting parameters, easier operation;
(8) Support remote control for mobile phone apps and monitoring equipment operation, convenient and fast;
(9) Support Internet remote control, system upgrade function, HD image acquisition, visual system adaptive correction technology, self-learning statistical analysis technology, and one-key automatic parameter adjustment technology；
(10) IR cameras are optional to be added.
Application
